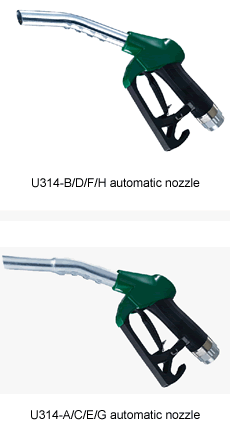

| U314 Automatic nozzles are designed with today's customer in mind. Small, trim, light weight, easy and convenient to use. It is a rugged performer that offers long life and reliable service. |
 |
 |
 |
| Warning |
| Use foreign objects to hold open automatic nozzles could result in failure to shut-off and personal injury. |
|
| Materials: |
| Body: |
Aluminum |
| seals: |
Buna-N, Viton |
| Main stem seals: |
Viton Cased Oil Seal / Graphite with Teflon |
| Main stem: |
Stainless steel |
|
| Color of insulator : |
| Red |
Green |
Blue |
Yellow |
Black |
|
| Features : |
 |

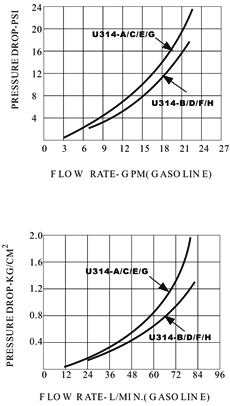

U314-A/C/E/G Flow rate: 0-45 L/m ( (13/16")
U314-B/D/F/H Flow rate: 0-70 L/m (15/16")
Working Pressure: 0.18Mpa |
|
Compound Main valve and bleed poppet
Tight structure, attractive appearance. Minimum pressure Loss and
offer a maximum flow rate |
|
Accurate flow control-
It allows customers to top off their tank to the exact amount that they
want , and it's easy to stop gasoline flow precisely. |
|
Easily replaced rotar y 360 swivel- prevents the hose
from curling up. |
|
Hold-open rack is available for full service applications.
The one hand control means easy setting to flow rate for customer's convenience. |
|
Spout with gear: Making it to be holding on the spout of tank
without hand, improving your efficiency. |
|
Flow-lock: designed to shut-off automatically when the spout is
tripped up, limiting spillage, avoiding accident. |
|
Hand insulator- protect both nozzle and vehicle, and insulates
users' hands. |
|
Available Colors- color chart on inside back cover |
|
Selective splash guard. |
|
100% Factory Tested |
|
| Replacement Parts: |
| Key |
Description |
| 1 |
Spout 13/16" & Spout 15/16" |
| 2 |
Full hand insulator |
| 3 |
Lever-Guard Lever Assembly |
| 4 |
Diaphragm Assembly |
| 5 |
Vac Cap |
| 6 |
Main Valve |
| 7 |
Swivel BSPT3/4" & NPT3/4" & BSPT1" & NPT1" |
|
| Package: |
| Net Weight |
Cross Weight |
Dimension |
| 18.75kg/case of 15 |
22kg/case of 15 |
55x34x42.5cm/case of 15 |
|
| Ordering Specifications: |
| Product ID |
Connection Threads |
Outlet |
| U314-A |
NPT 3/4'' |
13/16'' |
| U314-B |
NPT 3/4'' |
15/16'' |
| U314-C |
BSPT 3/4'' |
13/16'' |
| U314-D |
BSPT 3/4'' |
15/16'' |
| U314-E |
NPT 1'' |
13/16'' |
| U314-F |
NPT 1'' |
15/16'' |
| U314-G |
BSPT 1'' |
13/16'' |
| U314-H |
BSPT 1'' |
15/16'' |
|
| Important: |
| The products should be used in compliance with applicable country, province and local Laws and regulations. Products selection should be based on physical Specifications and limitations and compatibility with the environmentand materials to be handled. HONGYANG makes no warranty of fitness for a particular use. All illustrations and Specifications in this literature are based on the latest products information available at the time of publication,HONGYANG reserves the right to make changes at any time in price, materials. Specifications and models and to discontinue models without notice or obligation |
|
