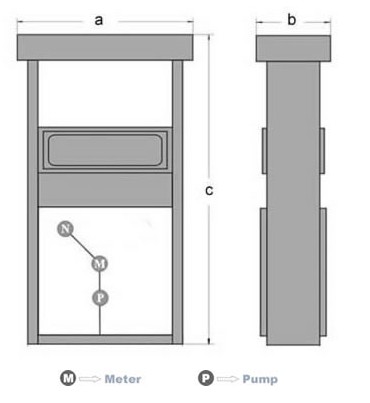

Internal Structure:
| Specifications: |
 |
C Series CMD1687SK-G |
| Pump |
Type |
Optional |
| Inlet Pressure |
≥54kPa. |
| Flow rate (L/min.) |
55±5 |
| Suction Distance (m) |
6(verticalmente) / 50(orizzontalmente) |
| FlowMeter |
Type |
Optional |
| Accuracy |
±0.2% |
| Motor |
Voltage(V) |
110V/220V/380V,50Hz/60Hz |
| Capacity(hp) |
1HP(0.75kw) |
| Input Voltage |
110V/220V/380V,50Hz/60Hz |
| Nozzle |
Auto Shut-off Nozzle |
| Environmental Condition |
－40℃~~＋55℃ |
| Control Type |
Solenold Vale Control Type |
| Preset |
Function Provided(Small LCDIndicator) |
| Display(Counter) |
Type |
LCD and Bright Backlight |
| Digit of Volume |
0~~999,999(6 Digits)，Decimal point can be changed |
| Digit of Amount |
0~~999,999(6 Digits)，Decimal point can be changed |
| Digit of Unit price |
0~~9999(4 Digits)，Decimal point can be changed |
| Digit of Total Range |
0~~99,999,999,99 |
| Optional Display |
Type |
LCD and Bright Backlight |
| Digit of Volume |
0~~99,999,999(8 Digits)，Decimal point can be changed |
| Digit of Amount |
0~~99,999,999(8 Digits)，Decimal point can be changed |
| Digit of Unit price |
0~~999999(6 Digits)，Decimal point can be changed |
| Digit of Total Range |
0~~99,999,999,99 |
| Totalizer |
1~~9,999,999 |
| Hose |
4.5m |
| Weight |
205kg |
| Dimension（L×W×H） |
1100*525*2170(mm) |
| Dimension（L×W×H）Of Qty of Container |
40ft: 44 20ft: 22 |
|
| Optional: |
| C-GN1 |
C-GN2 |
C-GT2 |
C-GT2M |
 |
 |
 |
 |
