Electric cable U208
bookmark this page Bookmark This Page
print this page Print This Page
live messenger Live Messenger
skype me Skype Me
e-mail us info@yc-fc.com
Send Inquiry
catalogue download Catalogue Download

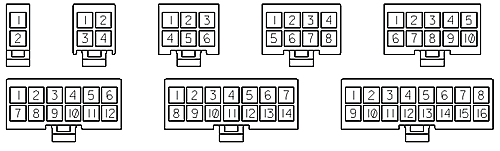

Pin ordinal drawing:
fuel dispenser
Features:
fuel dispenser Temperature:-40℃ to 105℃
fuel dispenser Current-max :9A.Voltage-max:600V
fuel dispenser Withstanding Voltage:1500VAC. Contact Resistance :10 milliohms max.
fuel dispenser Insulation Resistance 1000 Megohms min.
fuel dispenser Japinese molex brand,high quantity
fuel dispenser Crimp Housings 4.20mm (.165") Pitch Mini-Fit, Jr. Receptacle, Dual Row.model:5557d
fuel dispenser Crimp Terminals 4.20mm (.165") Pitch Mini-Fit Family Crimp Terminals, Female.model:5556
fuel dispenser PCB Headers 4.20mm (.165") Pitch Mini-Fit, Jr. Header, Vertical, Dual Row without PCB Snap-In Peg Locks.model:5566vwo
fuel dispenser Weight:90g.each
fuel dispenser 100% Factory Tested.



Ordering Specifications:
Product ID Pin Link
U208-A 8-8 display-main board
U208-B 8-4,4,4 display-power board
U208-C 6-4,2 main board-power board/SSR
U208-D 16-16 keypad-main board
U208-E 4-4 main board-power board
