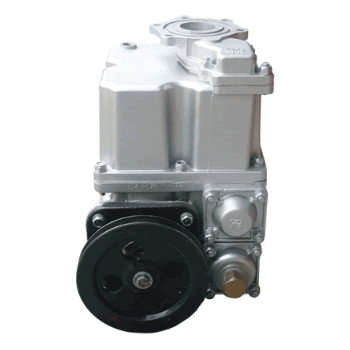

Pumping Unit U102-A

	Bookmark This Page
	Print This Page
	Live Messenger
	Skype Me
	info@yc-fc.com
	Send Inquiry
	Catalogue Download

fuel dispenser

fuel dispenser

fuel dispenser

fuel dispenser

Materials:
Body:	Aluminum (Spray-Painted)
seals:	Buna-N

Technical Specifications:
	Working Motor Power: 750 W
	Maximum. Flow: 60L/min
	Rotary speed of pump: 520 rip
	Noise: 68db(A)
	Minimum. vacuum degree: 0.054Mpa
	Pressure Drop: 0.12-0.25Mpa
	Separate Ability of Oil and Air: ≥20%

Features :
	Positive displacement, self priming, internal gear type and adjustable bypass valve.
	Designed for quiet, vibration-free operation.
	Reusable suction strainer filter at inlet connection.
	Reverse check valve at air separator float mechanism.
	Check and relief valve at outlet of pumping unit.
	100% Factory Tested.

Replacement Parts:
Key	Description	Materials
1	Coupling	Aluminum
2	Sealing O-ring φ82*24	Buna-N
3	Sealing gasket-ring	Buna-N
4	Up cap	Aluminum
5	Floating kits	Swell Buna
6	Cap	Aluminum
7	Screen kits
8	Overfill prevention valve kits
9	Graphite vane	Graphite
10	Body	Aluminum
11	Outler valve kits
12	Cap	Brass
13	Sealing gasket	Aluminum
14	Exhausting Joint	Buna-N
15	Pipe Kits	Aluminum
16	Sealing gasket	Buna-N
17	Sealing gasket	Buna-N

Package:
Product ID	Net Weight	Cross Weight	Dimension
U102-A	17.5kg/case of 1	18.5kg/case of 1	35.5x27x33cm/case of 1

Ordering Specifications:
Product ID	Product Name
U102-A	Vane pump
