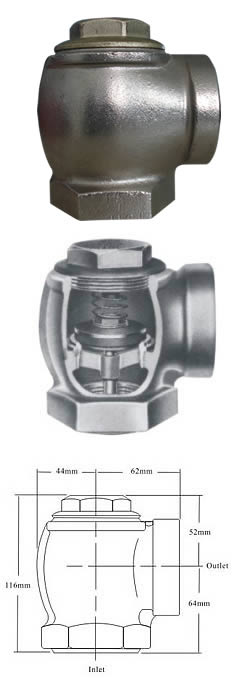

Angle Check Valve U407 Series

    U407 Angle Check Valves are installed on suction system, fuel lines on top of fuel storage tanks to maintain prime. Models are available with male threaded inlets for connection directly into tank bung fittings or with female inlets for connection to a nipple that is threaded into a tank bung fitting. Single-poppet models can be used in applications where the valve is easily accessible for maintenance and disc cleaning or replacement.

fuel dispenser
Materials:
Body: cast steel
Surface: electronic Nickel plated
Seal : Viton Cased Oil Seal
Features:
fuel dispenser U407 features a spring-loaded poppet and Viton Cased Oil Seal discs to assist in keeping the valve closed when installed in high-vibration areas
fuel dispenser The Angle Check Valves are recommended for use on suction lines where the pressure does not exceed 34 ft of head. ( approximately 15 psi.)
fuel dispenser Materials is cast steel diffrent with cast iron materials , the body will be more stronger more hermetical more pressure resistance
fuel dispenser Used for disel, gasoline, ethanol etc.
fuel dispenser 100% Factory Tested.
Ordering Specifications:
Product ID Connection Threads Outlet
U407-A NPT1½ " NPT1½ "
U407-B NPT1½ " BSPT1½ "
U407-C BSPT1½ " NPT1½ "
U407-D BSPT1½ " BSPT1½ "
