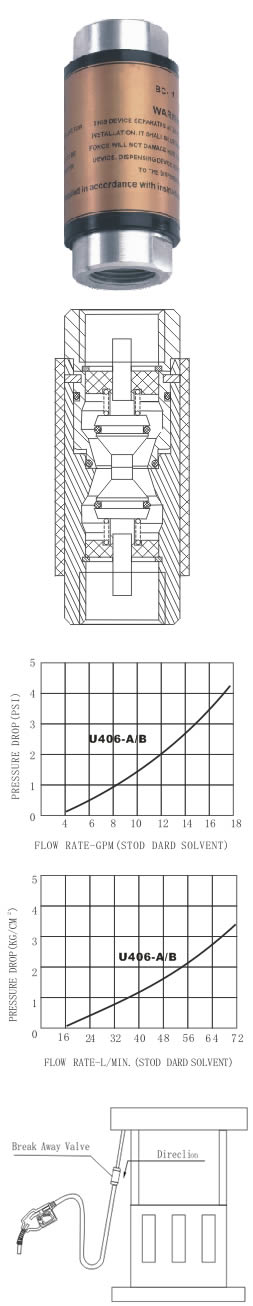

The U406 is designed to be installed on fuel dispensing hoses,and will separate when subjected to a designed pull force. The dual valves seat automatically, stopping the flow of fuel and limiting any fuel spillage, while protecting the dispensing equipment. For proper operation, the U406-A/B should be installed with a "straightening" hose with a minimum length of 9". U406-C/D should be installed with a minimum length of 12" .

Materials:
Body:	Aluminum
Main Seals:	Viton
Main Spring:	stainless steel
Guide and poppet:	POM
Protective Sleeve:	PVC

Features:
	Pull force- the U406 will break away with a pull force of 250 lbs ±5%, the U406 will break away with a pull force of 300 lbs±5%.
	Certainty of operation- designed to be replaced after separation, instead of reassembled, to protect against reassembly errors.
	Unique double-poppet design-features low pressure drop.
	Flow rate: 0-60L/Min(3/4") 0-120L/Min(1")
	Working pressure: 0.18Mpa
	Low pressure drop- the integral check valve design allows for minimal pressure drop for faster, high-volume fill-ups.
	100% Factory Tested.

Package:
Product ID	Net Weight	Cross Weight	Sizet
U406-A	23kg/case of 100	26kg/case of 100	26.8x48x26 cm /case of 100
U406-B	23kg/case of 100	26kg/case of 100	26.8x48x26 cm /case of 100
U406-C	19kg/case of 50	22kg/case of 50	29x29x30 cm /case of 50
U406-D	19kg/case of 50	22kg/case of 50	29x29x30 cm /case of 50

Ordering Specifications:
Product ID	Connection Threads	Outlet
U405-A	NPT3/4 "	NPT3/4 "
U405-B	BSPT3/4 "	BSPT3/4 "
U405-C	NPT1 "	NPT1 "
U405-D	BSPT1"	BSPT1"
