| U301 series automatic nozzles are designed with today's customer in mind. Small, trim, light weight, easy and convenient to operate, the is a rugged performer that offers long life and reliable service. |
|
| Materials: |
| Body: |
Aluminum |
| seals: |
Buna-N |
| Main stem seals: |
Viton Cased Oil Seal / Graphite with Teflon |
| Main stem: |
Stainless steel |
|
| Color of insulator : |
| Red |
Green |
Blue |
Yellow |
Black |
|
| Features : |
 |

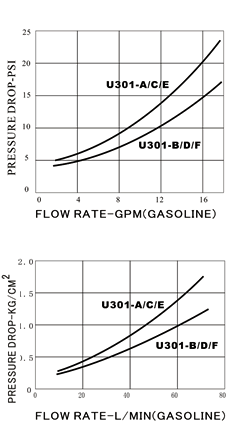

U301-B/D/F Flow rate: 0-60 L/m (15/16")
U301-A/C/E Flow rate: 0-45 L/m (13/16")
Working Pressure: 0.18Mpa |
|
U301 Automatic Nozzles-for diesel, kerosene and all kinds of gasonline service. |
|
Easily replaced spout- simply remove the screw.
Spout kits are available from HONGYANG. |
|
Low profile aluminum body- light weight, easier to handle, provides an attractive, image enhancing appearance. |
|
Hold-open rack is available for full service applications.
The one hand control means easy setting to flow rate for customer's convenience. |
|
Full hand insulator- protects both nozzle and vehicle, and insulates users' hands. |
|
Selective splash guard. |
|
100% Factory Tested. |
|
Available Colors- color chart on inside back cover |
|
| Replacement Parts: |
| Key |
Description |
| 1 |
Spout 13/16'' |
| 2 |
Spout 15/16'' |
| 3 |
Full hand insulator |
| 4 |
Lever |
| 5 |
Lever assembly |
| 6 |
Diaphragm assembly |
| 7 |
Main valve assembly |
|
| Package: |
| Net Weight |
Cross Weight |
Dimension |
18.75kg/case of 15
12.25kg/case of 10 |
22kg/case of 15
15kg/case of 10 |
55x34x42.5cm/case of 15
37.5x34x43cm/case of 10 |
|
| Ordering Specifications: |
| Product ID |
Connection Threads |
Outlet |
| U301-A |
NPT 3/4'' |
13/16'' |
| U301-B |
NPT 3/4'' |
15/16'' |
| U301-C |
BSPT 3/4'' |
13/16'' |
| U301-D |
BSPT 3/4'' |
15/16'' |
| U301-E |
G 3/4'' |
13/16'' |
| U301-F |
G 3/4'' |
15/16'' |
|
| Important: |
| The products should be used in compliance with applicable country, province and local Laws and regulations. Products selection should be based on physical Specifications and limitations and compatibility with the environmentand materials to be handled. HONGYANG makes no warranty of fitness for a particular use. All illustrations and Specifications in this literature are based on the latest products information available at the time of publication,HONGYANG reserves the right to make changes at any time in price, materials. Specifications and models and to discontinue models without notice or obligation. |
|
