| For Heavy Duty, High-flow Truck stop, Bus and Fleet Service If you operate a full-service truck-stop, refuel your own fleet, or manage a card-lock refueling location, the low cost, long life and durability of the 120L high flow nozzle can help increase your productivity, sales and profits. |
 |
 |
 |
| Warning |
| Do not use U303 Nozzles with a hold-open device on prepay self-service installations.Using foreign objects to hold-open automatic nozzles could result in failure to shut-off and personal injury. |
|
| Materials: |
| Body: |
Aluminum |
| seals: |
Buna-N, Viton |
| Main stem seals: |
Viton Cased Oil Seal / Graphite with Teflon |
| Main stem: |
Stainless steel |
|
| Color of insulator : |
| Red |
Green |
Blue |
Yellow |
Black |
|
| Features : |
 |

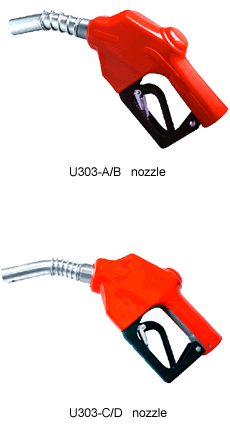

U303A/B Flow rate: 0-120L/m (113/16")
U303C/D Flow rate: 0-90 L/m (1")
Working Pressure: 0.18Mpa |
|
U303 Automatic Nozzles for diesel, kerosene and all kinds of gasoline service. |
|
Easily replaced spout- simply remove the screw.
Spout kits are available from HONGYANG. |
|
Even, smooth, spray pattern- minimizes diesel foaming and false shut-offs. |
|
Three position hold-open device- one finger control of hold-open mechanism means easy setting of flow rate. |
|
Full hand insulator- protects both nozzle and vehicle, and insulates users' hands.Available Colors- color chart on inside back cover |
|
Dual poppet valves- easy to open nozzle against high pressure. |
|
Spout retaining ring- adds extra measure in securing nozzle spout in fill pipe. |
|
100% Factory Tested. |
|
| Replacement Parts: |
| Key |
Description |
| 1 |
Spout 1'' |
| 2 |
Spout 13/16'' |
| 3 |
Full hand insulator |
| 4 |
Lever |
| 5 |
Lever assembly |
| 6 |
Diaphragm assembly |
| 7 |
Main valve assembly |
|
| Package: |
| Net Weight |
Cross Weight |
Dimension |
| 16kg/case of 10 |
19kg/case of 10 |
45x40x32.5cm/case of 10 |
|
| Ordering Specifications: |
| Product ID |
Connection Threads |
Outlet |
| U303-A |
NPT 1'' |
13/16'' |
| U303-B |
BSPT 1'' |
13/16'' |
| U303-C |
NPT 1'' |
1'' |
| U303-D |
BSPT 1'' |
1'' |
|
| Important: |
| The products should be used in compliance with applicable country, province and local Laws and regulations. Products selection should be based on physical Specifications and limitations and compatibility with the environmentand materials to be handled. HONGYANG makes no warranty of fitness for a particular use. All illustrations and Specifications in this literature are based on the latest products information available at the time of publication,HONGYANG reserves the right to make changes at any time in price, materials. Specifications and models and to discontinue models without notice or obligation |
|
